THE IDEAL COMBINATION OF AERIAL POWER AND URBAN AGILITY

The NXT 110 aerial yields maximum and unrestricted performance with up to 750-pound tip load, at any angle and extension. This performance combined with a low profile pump and short overall length deliver unprecedented maneuverability without sacrificing compartment space or performance.

A more compact, yet powerful NXT pump with up to 2,250 GPM and a 500 gallon tank provide the power needed to manage any situation. The pump is positioned at the rear of the cab under the seat extension allowing for a full body pump, without taking up space inside the cab. Low pump inlet and discharges provide a safe and ergonomic work environment.

At a Glance

110' vertical reach | 99' horizontal reach
750 lb. tip load with 14' outrigger spread
500 lb. tip load with 12' outrigger spread
1,500 gpm aerial water flow capacity
2,250 gpm fire pump
Up to 170 ft. of internal ground ladder storage
Under 40' overall travel length
53° cramp angle
223" wheelbase

SAFETY INNOVATIONS

Protects like no other with the Industry's #1 Rated Safety System

Spartan Advanced Protection System

Outboard Sensors

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Detects multi-angle impacts allowing faster deployment of airbags with sensors mounted on the outer perimeter of the cab.

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

Advanced Seatbelts

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

State-of-the-art outboard sensors protect occupants from multi-angle impacts in the cab. These sensors are mounted at the outer perimeter of the cab providing a “zone of safety” inside the cab. Each sensor communicates back to the restraint control module that monitors which airbag should deploy and under what conditions.

Industry-First Outboard Sensors

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Advanced Seatbelts

With a reputation for spacious, secure, and well-designed cabs, Spartan now adds the industry’s best HVAC system to its cab offerings — creating a safer and more comfortable environment for Fire Fighters working in any kind of climate.

Advanced Climate Control

Provides decades of corrosion protection through hot-dip galvanizing, one of the most maintenance-free and economical corrosion-protection systems available. Particularly beneficial for trucks in Northern climates that are regularly exposed to snow/ice melt chemicals.

Galvanized Frame Rails

FEATURES

Safe. Strong. Stable.

Square and rectangular tubing provide a large ladder cross section for superior rigidity, with longer weld joints for increased ladder strength. Tubular Welded Steel Torque Box Mainframe stiffens the backbone of the apparatus to provide a rigid and durable mounting base for the aerial and body. This helps absorb the overturning loads generated by the aerial and distributes them evenly to the outriggers.

Excellent Horizontal and Vertical Reach

Built with up to 100,000 psi yield strength steel that can be depressed as low as 7º below horizontal or as high as 78º above horizontal. This allows firefighters to reach taller structures and have easy access to the ladder when lowered to ground level.

12′ and 14′ Narrow Outrigger Spread

Built with up to 100,000 psi yield strength steel that can be depressed as low as 7º below horizontal or as high as 78º above horizontal. This allows firefighters to reach taller structures and have easy access to the ladder when lowered to ground level.

Superior Grade Operations

Set-up and operate on grades of up to 20% with unrestricted performance. The footplate swivels in all directions, providing superior holding on uneven terrain, and the 24″ X 24″ auxiliary ground plates provide additional load distribution on soft ground.

Low Ground Ladder Storage

Fully enclosed ground ladders are located just 40″ from the ground, providing safe and ergonomic access to up to 170 ft. of storage.

Safe and Easy Turntable Access

Wide egress steps and walkways provide easy access to and from the ladder.

Maximum Pump Capabilities

The non-proprietary NXT pump offers up to 2,250 GPM along with added room and storage in the cab and body.

Maximized Space Usage

The unique packaging of the NXT 110 offers maximum storage space inside the cab and body compartments.

Greater Control and Stability

The unique packaging of the NXT 110 offers maximum storage space inside the cab and body compartments.

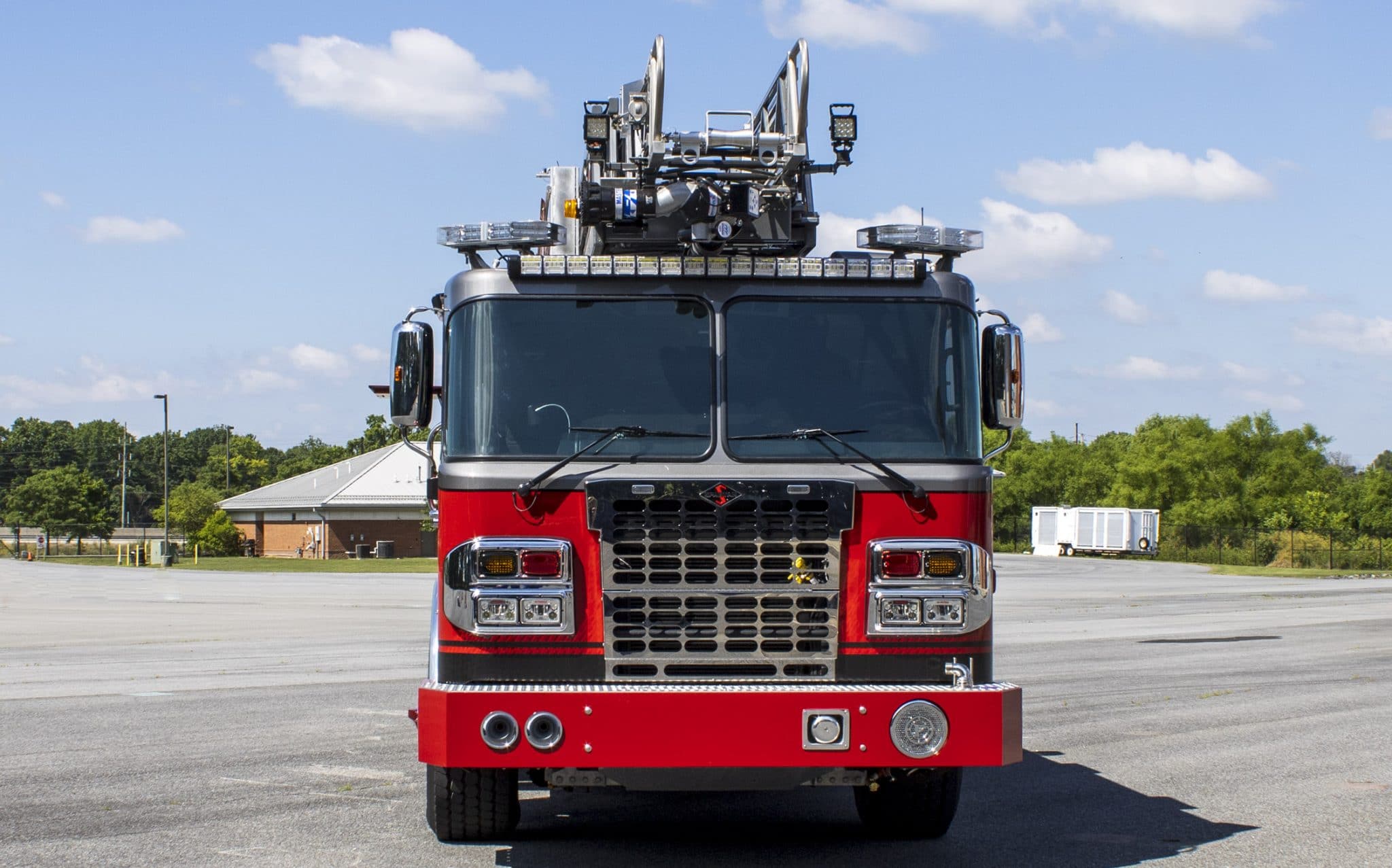

Low Travel Height

The ladder sections are designed to provide a low profile and travel height, making it easy to fit into historic firehouses and under bridges.

Independent Front Suspension

Spartan’s 20k and 24k independent front suspensions provide superior cramp angles with full air suspension available with a range of tire sizes designed for easy service and maintenance.

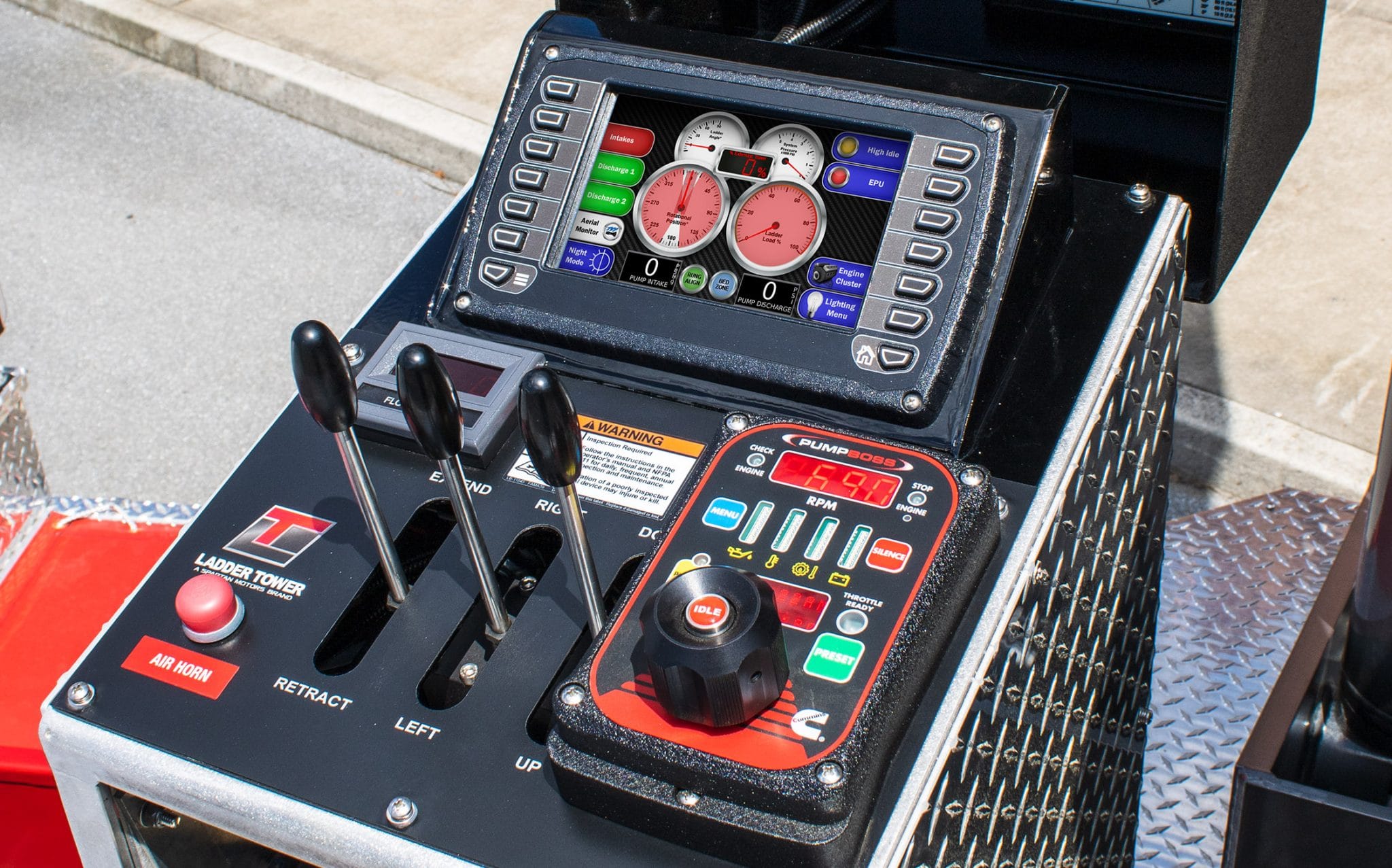

Control Technology

The Omni Pump System can be integrated into the aerial turn table controls, giving the operator the ability to control both the aerial and the pump operations from a single location

Pump Operators Panel

The pump operators panel is located inside the L2 compartment. Choose from standard controls or the optional Omni Pump System shown.

110′ Aerial Water Monitor

When positioned at the tip, the water monitor can be elevated at 30 degrees higher than the elevation of the ladder.
