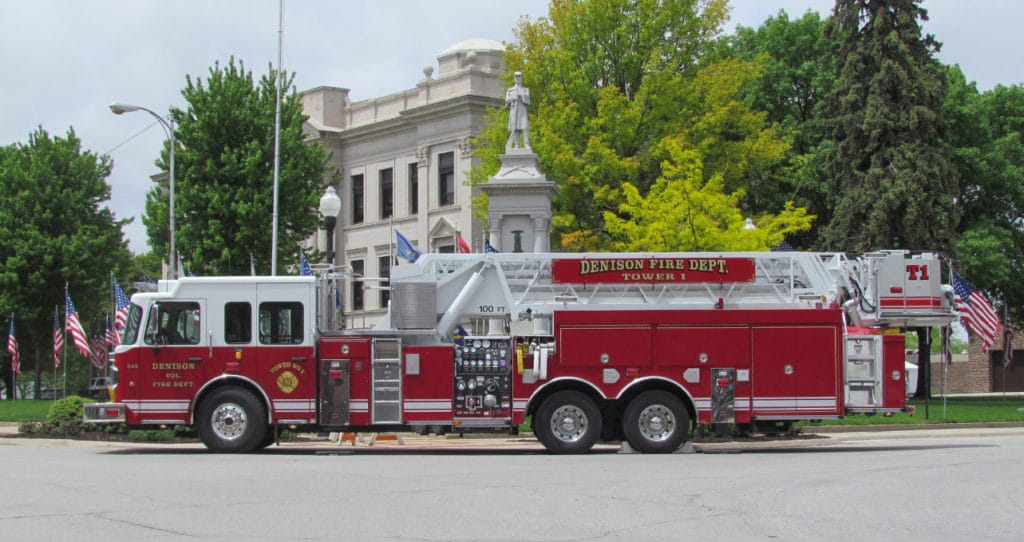

100' Mid Mount Platform

OVERVIEW

INNOVATIONS

FEATURES

GALLERY

BROCHURES

MAXIMIZE YOUR REACH

Designed for safety, functionality and serviceability, our platforms can flow large volumes of water or perform precision rescue operations—like a Swiss Army knife, they can do it all. Our platform controls have infinite feathering, ramping features, and low/medium/high “shift on the fly” speed controls providing smooth multi-function operation of the aerial, even at low angles of elevation and fully extended.

A 1,500 GPM flow rating is standard, with monitor capabilities of 45º up and down, and a full 180º horizontal sweep.

At a Glance

5-section ladder design
1000 lbs. dry / 500 lbs. wet tip-load
4 H-style outriggers
Up to 1500 GPM waterway flow
Up to 300 US gallon tank capacity
Low travel height

Angle of Elevation

-12° to 72°

Vertical Reach

100′

Horizontal Reach

99′

Stabilizer Spread

18′

Tip Load

1000 lbs. dry / 500 lbs. wet

SAFETY INNOVATIONS

Protects like no other with the Industry's #1 Rated Safety System

Spartan Advanced Protection System

Outboard Sensors

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Detects multi-angle impacts allowing faster deployment of airbags with sensors mounted on the outer perimeter of the cab.

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

Advanced Seatbelts

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Eight airbag positions, the most offered by any manufacturer, including knee and side curtain airbags. These give your apparatus the highest available impact and anti-ejection protection on the market.

Eight Air Bag Positions

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

State-of-the-art outboard sensors protect occupants from multi-angle impacts in the cab. These sensors are mounted at the outer perimeter of the cab providing a “zone of safety” inside the cab. Each sensor communicates back to the restraint control module that monitors which airbag should deploy and under what conditions.

Industry-First Outboard Sensors

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Advanced Seatbelts

Spartan offers flat, 5″, 10″, 20″, and 24″ raised roof options that are reinforced with C-channel supports. As well as multiple seating configurations to provide your crew with extended legroom, improved visibility, additional storage and provides extra safety from triple-reinforced box front bulkhead, engine compartment, front and rear step assemblies.

Cab Construction

FEATURES

LED Rung Lights

Smeal offers blue rung lighting for superior visibility in the aerial climbing area.

CP-84 Chrome Plated Waterway

The strongest, most durable waterway in the industry featuring a galvanized inner coating prevents corrosion of the 84,000 psi pipe. The exterior waterway is chrome plated to provide a smooth telescopic movement throughout the entire extension and retraction of the aerial ladder.

FP-4 Stabilizing System

Our unique stabilizing system places the front stabilizers just behind the cab of the apparatus. This forward placement provides superior fore/aft leveling capability on steep terrain, plus easy access to the pump panel, while reducing stress on the chassis.

Offers an optional ladder attachment to help firefighters safely and securely climb to and from the platform and a building parapet or flat roof.

Parapet Ladder Attachment

AL-11 Aerial Logic

A totally integrated system that provides instant feedback on a ladder’s extension, location, retraction, angle, load and breathing air system status, as well as J1939 engine information.

Aerial Smart Storage

Optional storage around the wheel wells increases the amount of usable compartment space. Smart Storage compartments were designed to free up body compartment space and bring equipment to a more usable height.

Bi-fold Platform Doors

Two bi-fold doors at the front of the platform provide easy access and allow responders to easily egress to and from the platform. A hinged safety bar is located at each entrance for additional safety during rescue operations.

Platform Leveling System

Spartan’s platform leveling system electronically monitors the position of the platform relative to the earth and not the position of the apparatus.
