MAXIMIZE YOUR REACH

Compact and maneuverable, the Ladder Tower 75’ rear mount ladder on a single rear axle is designed to deliver the highest level of performance in the toughest, high-run urban and suburban environments.

Built on wheelbases as short as 207”, this rugged aerial offers 75′ of vertical and 66’ of horizontal reach with a 500 lb tip load rating while flowing 1,500 GPM and an allowance for 100 lb of equipment at the tip. The overall height is 11’ 5” allowing this aerial to easily navigate low fire station doors, bridges and underpasses. The LT 75′ aerial features 500 gallon water tank, sideload hosebed capable of 1,000′ of 5″ LDH and low enclosed ladder storage that promotes quick, safe removal and easier handling for up to 115’ of ground ladders.

At a Glance

Available in quint or traditional truck style
3-section aerial ladder design
Two-stabilizer system keeps weight and length at a minimum
Up to 500 lb. tip-load while flowing 1,500 gpm unrestricted
Up to 500 US gallon tank capacity
11’5” standard travel height

Angle of Elevation

-7° to 78°

Vertical Reach

75’

Horizontal Reach

66′

Stabilizer Spread

14'

Tip Load

500 lbs. Unrestricted

SAFETY INNOVATIONS

Protects like no other with the Industry's #1 Rated Safety System

Spartan Advanced Protection System

Outboard Sensors

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Detects multi-angle impacts allowing faster deployment of airbags with sensors mounted on the outer perimeter of the cab.

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

Advanced Seatbelts

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Eight airbag positions, the most offered by any manufacturer, including knee and side curtain airbags. These give your apparatus the highest available impact and anti-ejection protection on the market.

Eight Air Bag Positions

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

State-of-the-art outboard sensors protect occupants from multi-angle impacts in the cab. These sensors are mounted at the outer perimeter of the cab providing a “zone of safety” inside the cab. Each sensor communicates back to the restraint control module that monitors which airbag should deploy and under what conditions.

Industry-First Outboard Sensors

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Advanced Seatbelts

Spartan offers flat, 5″, 10″, 20″, and 24″ raised roof options that are reinforced with C-channel supports. As well as multiple seating configurations to provide your crew with extended legroom, improved visibility, additional storage and provides extra safety from triple-reinforced box front bulkhead, engine compartment, front and rear step assemblies.

Cab Construction

FEATURES

Versatile Outrigger System

Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “out and down” design automatically locks into supporting position with no locking pins to place or remove. The footplate swivels in all directions, providing superior holding on uneven terrain.

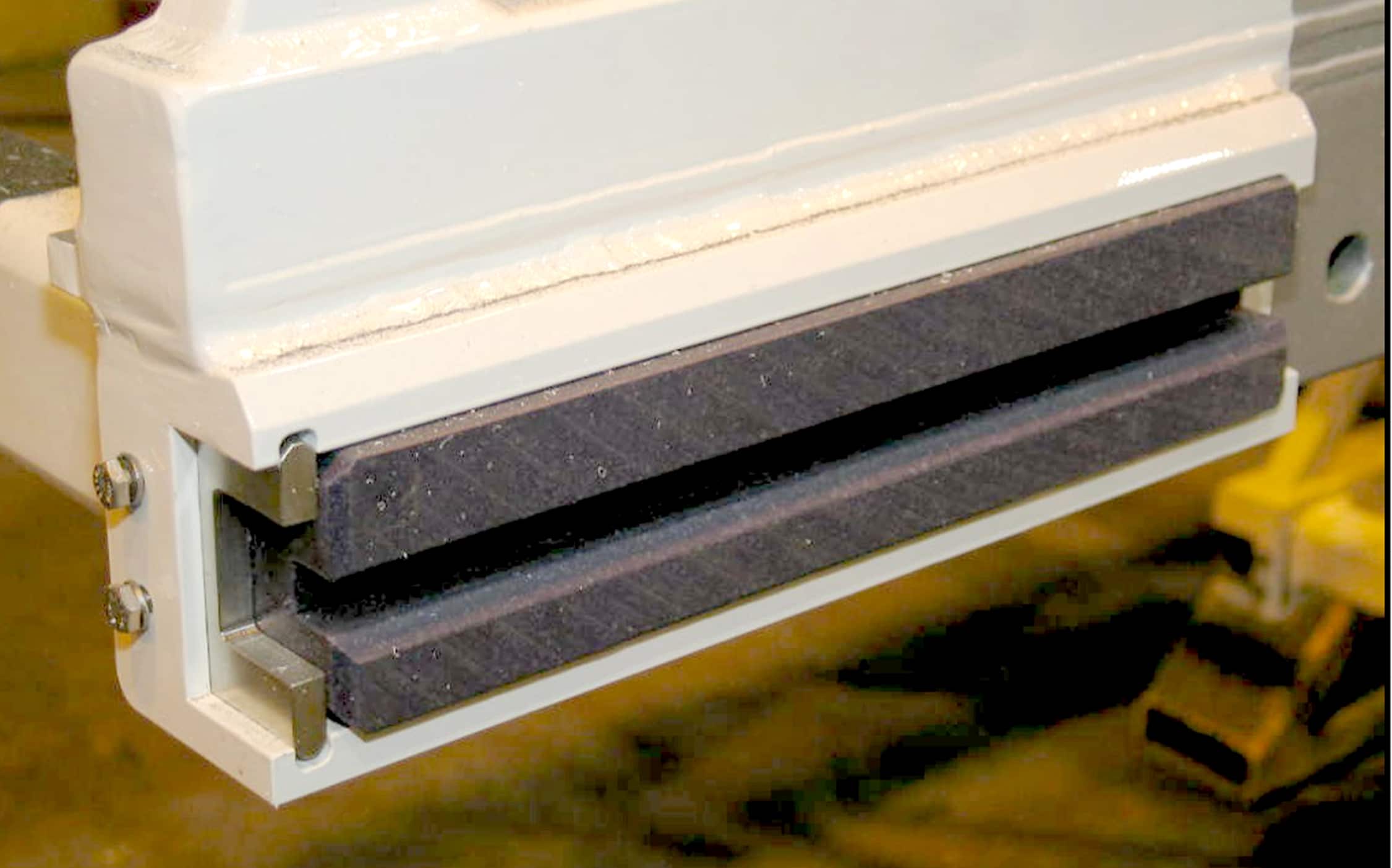

Ladder Slide Pads

Load Transfer Pads and Front, Rear & Side Slide Pads, designed with accessibility in mind for easy inspection and replacement, reduce friction and ensure smooth ladder operation.

Clean Climb

A wide, unobstructed walkway allows firefighters to climb with confidence with wires routed tight along handrails and out of the way, making all walking areas clear of hoses and harnesses.

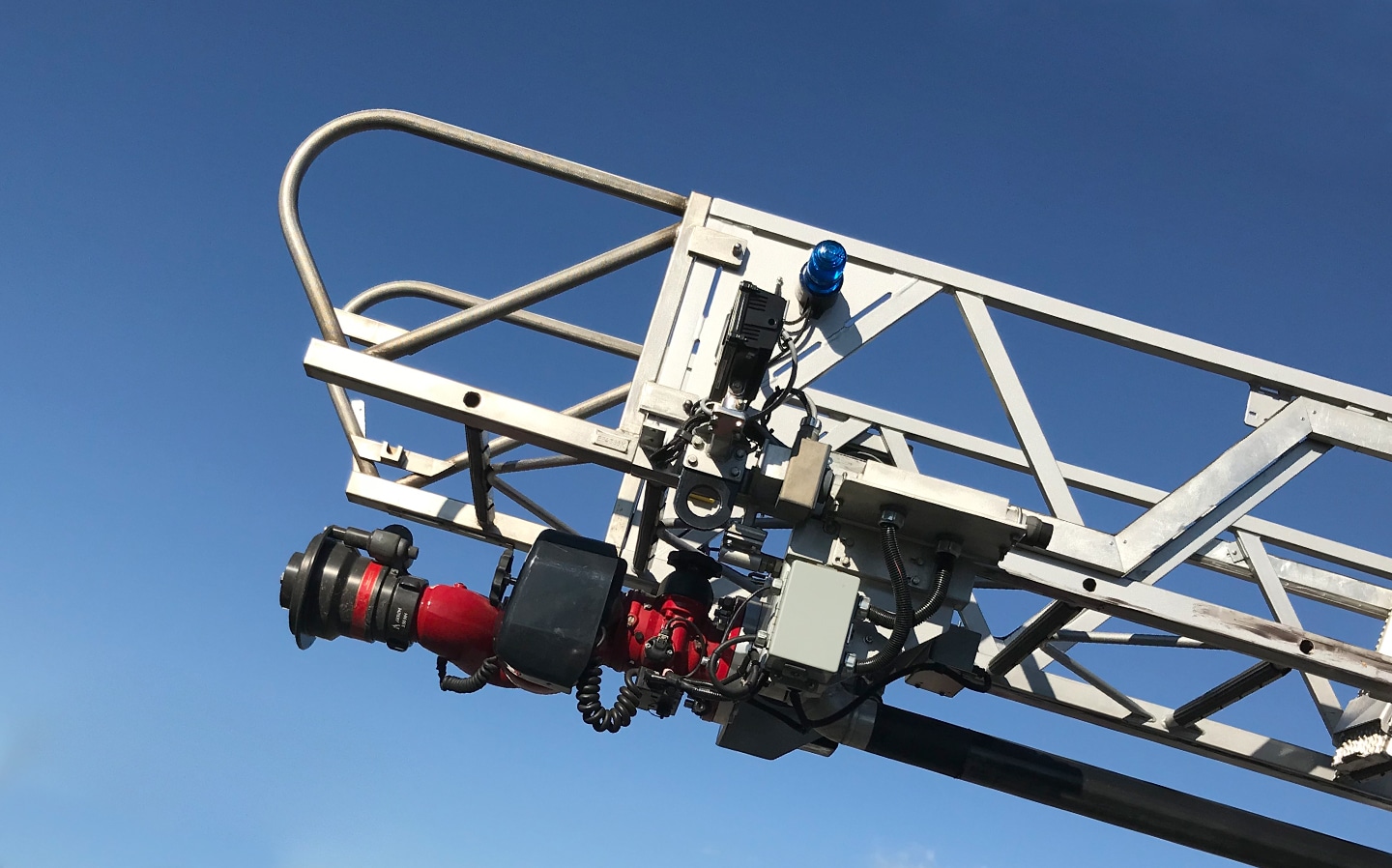

Ladder Tower Egress

Designed with an unobstructed opening for easy access, the bolt-on removable egress can be easily replaced. Available in various lengths.

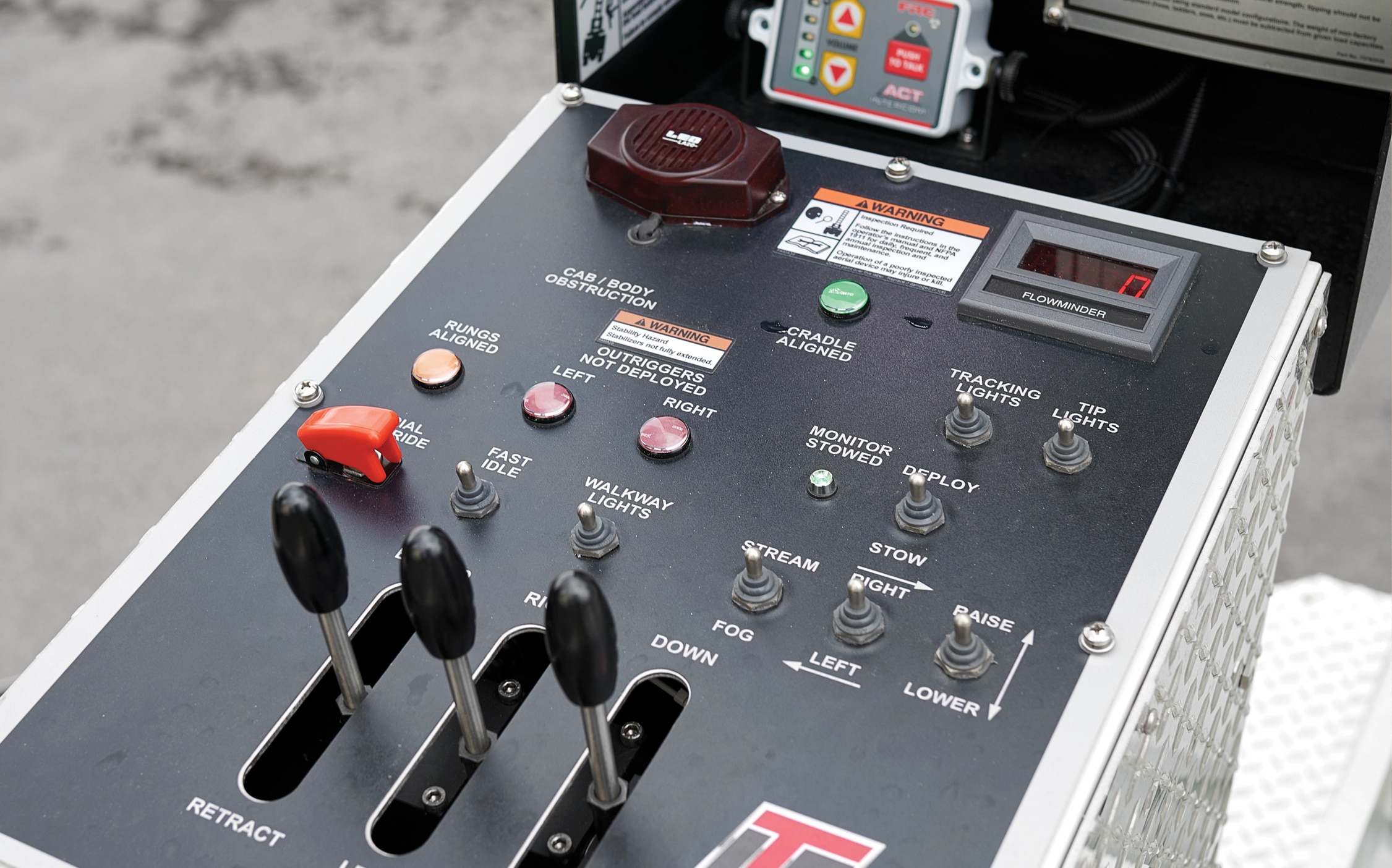

Simple Controls

Direct hydraulic control valves and hard-wired electric switches provide simple troubleshooting and worry-free operation.

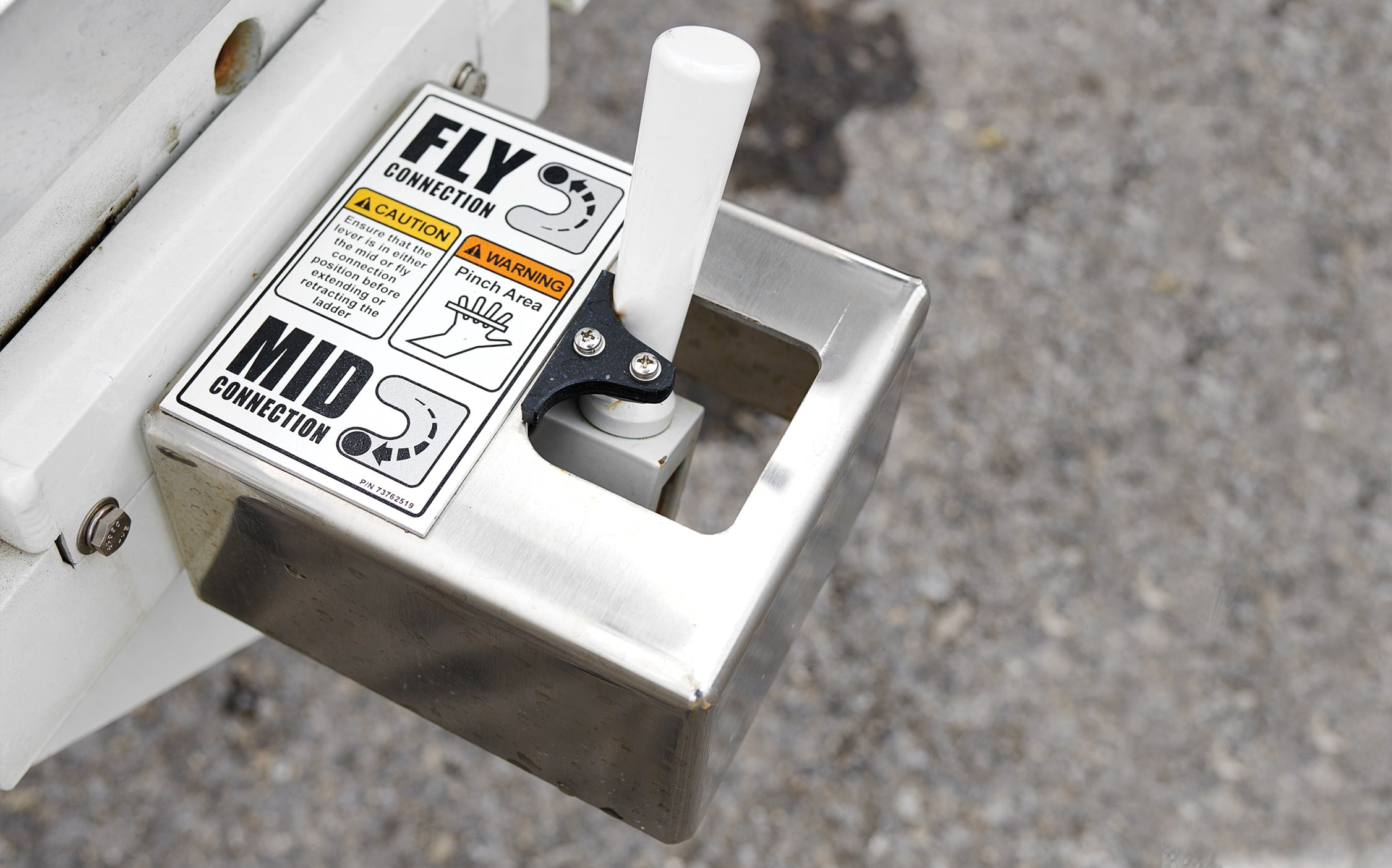

Waterway Controls

Re-positioning the waterway can be done easily with the flip of a mechanical lever.

75′ Aerial Water Monitor

When positioned at the tip, the water monitor can be elevated at 30 degrees higher than the elevation of the ladder.
