MAXIMUM PERFORMANCE IN COMPACT PACKAGE

The Ladder Tower 93′ Mid Mount Platform provides an advantage from every angle. The payload capacity will strike you as major, at 1,000 lbs. dry and 500 lbs. wet at full extension while flowing up to 2,000 gpm.

A short 235″ wheelbase with cramp angles up to 53°combined with an 18′ front and 16′ rear stabilizer spread allow for superior maneuverability and set-up capabilities in urban environments.

Together, these features make this one of the most maneuverable mid mount platforms in the industry today with an ability to get you there and get you set up with near-unit platform access. It’s ideal for aerial rescue and firefighting in urban areas with narrow streets, alleys and access areas.

At a Glance

Available in quint or traditional truck style
1000 lbs. dry / 500 lbs. wet tip-load unrestricted
Up to 2000 GPM waterway flow
2 front bumper swing down stabilizers provide additional stability for full 360 operations
4 H-style stabilizers
No front overhang eliminates any infringement on visibility from the cab
Low travel height

Angle of Elevation

-10° to 78°

Vertical Reach

93′

Horizontal Reach

88′ 6″

Stabilizer Spread

18′ F / 16′ R

Tip Load

1000 lbs. dry / 500 lbs. wet

SAFETY INNOVATIONS

Eight airbag positions, the most offered by any manufacturer, including knee and side curtain airbags. These give your apparatus the highest available impact and anti-ejection protection on the market.

Eight Air Bag Positions

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

State-of-the-art outboard sensors protect occupants from multi-angle impacts in the cab. These sensors are mounted at the outer perimeter of the cab providing a “zone of safety” inside the cab. Each sensor communicates back to the restraint control module that monitors which airbag should deploy and under what conditions.

Industry-First Outboard Sensors

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Advanced Seatbelts

Spartan offers flat, 5″, 10″, 20″, and 24″ raised roof options that are reinforced with C-channel supports. As well as multiple seating configurations to provide your crew with extended legroom, improved visibility, additional storage and provides extra safety from triple-reinforced box front bulkhead, engine compartment, front and rear step assemblies.

Cab Construction

At Spartan, we face reality head on with cabs that feature the most advanced safety provisions available in the market today. Designed and purpose-built for firefighters, the 360 camera is a forward-thinking safety apparatus , developed around the needs of the first responder.

360 Camera

FEATURES

Spacious Platform Working Area

A modular platform with 29 sq. ft. of working area and 7.5 cu. ft. of storage provides a safe and spacious work environment. An open grate non-slip aluminum floor prevents water and ice build up.

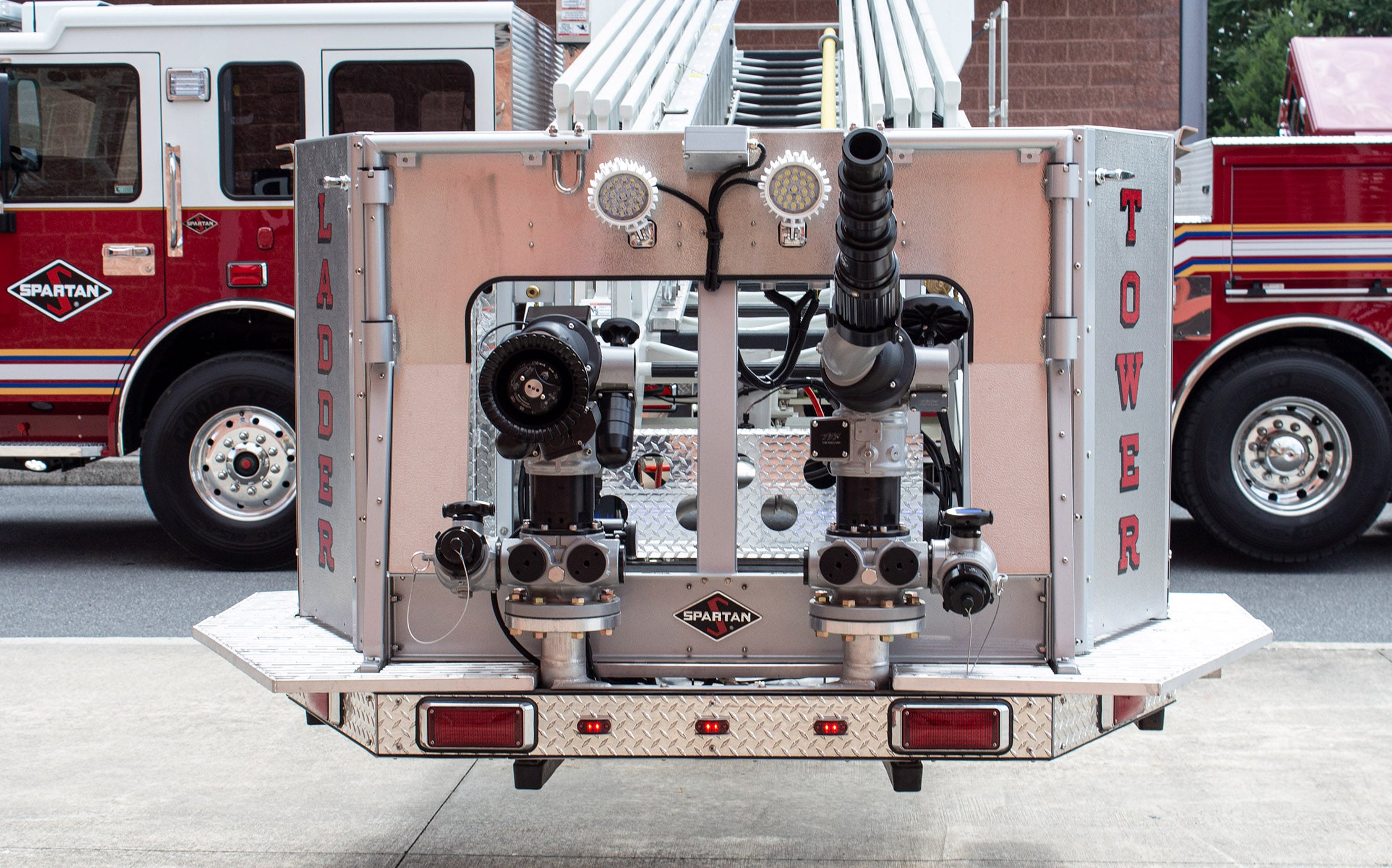

Angled Platform Corners

Angled platform corners offer a safe work environment with 8″ of outer walking surface that allows access from the front, sides, and at angles to the landing zone.

Platform Access Gates

Two swing-in access gates allow stair chair access and provide optimal working area in varying fire ground scenes.

Sliding Platform Controls

Sliding platform controls are mounted on the front of the platform allowing the operator to re-position the console to the left, center, or right side.

Integral Torque Box

An integral torque box frame allows for a low center of gravity and safe ergonomic access to ground ladders and equipment.

Wide Scrub Area

The 93′ MM Platform provides a dramatically smaller aerial swing radius, which is critical in narrow operating areas and when operating around trees, buildings, utility poles, and electric lines.

Compartment Storage

The Ladder Tower body design allows for up to 300 cu. ft. of compartment space for all your equipment needs.

Wide Unobstructed Aerial Walkway

A wide unobstructed aerial walkway with extra high handrails provides a safe and easy climbing environment for fire fighters.

93′ MM Platform Outrigger System

Four (4) H-style outriggers provide best-in-class leveling capabilities on steep and uneven terrain. Independent controls for horizontal and vertical extension allow set-up around obstacles such as curbs, trees, parked cars, and buildings.

Front Bumper Stabilizers

Front bumper stabilizers allow unrestricted operation over front of cab and provide stability on rough or steep terrain.

Obstruction Detection System

Detect obstacles in the potential path of each outrigger when approaching fire scene. A display inside the cab indicates safe deployment areas, allowing firefighters to quickly and safely set the truck up on tight congested scenes.

Low Clearance

An extremely low overall height of 10’8″ provides a lower center of gravity for improved ride and handling.

Minimal Platform Overhang

Minimal platform overhang allows for a shorter overall length, less weight, and less swing swing increasing maneuverability in tight areas.
