POSITION YOUR MASTER STREAM ANYWHERE

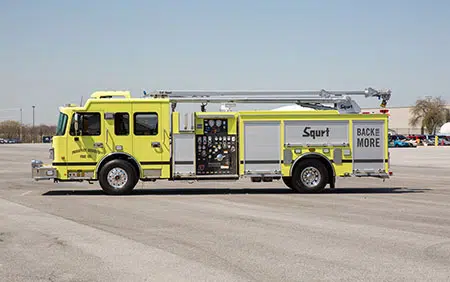

The Squrt® Articulating Water Tower reaches up, over, and under obstructions, positioning your master stream where it’s needed. This lightweight water tower combines excellent aerial master stream performance with a short wheelbase and the ability to customize it just the way you want. The Squrt® Articulating Water Tower’s narrow 11’9” stabilizers position fast and provide easy on scene set-up.

The Squrt® delivers an added dimension to the fire attach capability of a pumper without a significant increase in the overall size of the apparatus. The overall height is low 10’8” to handle low station doors, aqueducts, bridges, and overpasses.

At a Glance

Available on custom or commercial chassis
High strength steel lower boom construction
Light weight, high tensile strength aluminum upper boom
1000 gpm waterway flow
Up to 750 US gallon tank
11'9" stabilizer spread allows setup in tight streets
4” aluminum waterway
10’ 8” standard travel height

Vertical Reach

54′

Horizontal Reach

45′

Stabilizer Spread

11’9″

Monitor/nozzle lateral sweep

45° Side to Side

Monitor/nozzle vertical travel

240° (+/- 120°)

SAFETY INNOVATIONS

Protects like no other with the Industry's #1 Rated Safety System

Spartan Advanced Protection System

Outboard Sensors

Protects all occupants from side impact collisions, rollovers and occupant ejection. The only company in the industry whose airbags protect cab occupants from side impacts.

Side impact protection

Detects multi-angle impacts allowing faster deployment of airbags with sensors mounted on the outer perimeter of the cab.

Driver knee airbags

Protects against injuries resulting from hitting the instrument panel or other interior points of contact. Locks the lower body in place so the upper body can be slowed and protected by the steering wheel airbag.

Full side curtain airbags

Protects from a side impact or a rollover with airbags up to three times larger than other manufacturers. Each rear side airbag is custom-sized for the crew area of every cab built, with the largest rear side airbag covering seven times the area of any other manufacturer.

Advanced Seatbelts

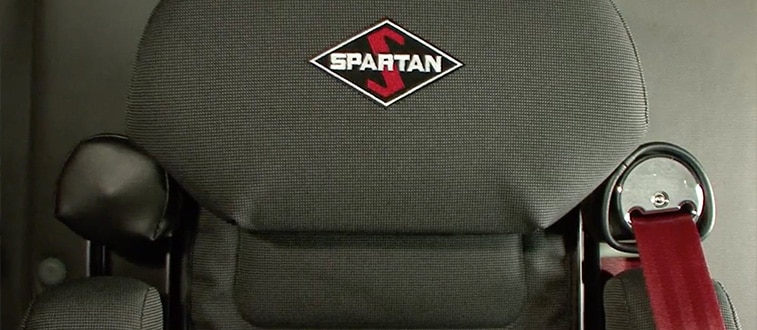

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

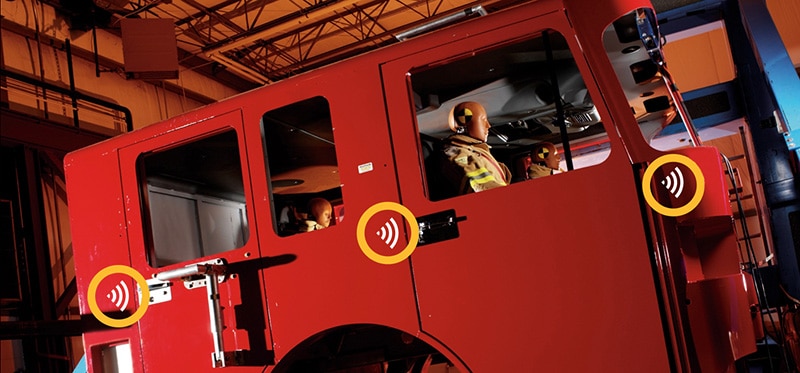

State-of-the-art outboard sensors protect occupants from multi-angle impacts in the cab. These sensors are mounted at the outer perimeter of the cab providing a “zone of safety” inside the cab. Each sensor communicates back to the restraint control module that monitors which airbag should deploy and under what conditions.

Industry-First Outboard Sensors

Pulls the occupant into the seat in the event of an impact, or rollover using pyrotechnic pretensioners that provide more force during the initial lock. After the occupant is pulled into the seat, load limiters release some of the webbing to control the occupant’s deceleration into the airbag system, helping to mitigate the strain on each occupant, further reducing seatbelt-related injuries.

Advanced Seatbelts

At Spartan, we face reality head on with cabs that feature the most advanced safety provisions available in the market today. Designed and purpose-built for firefighters, the 360 camera is a forward-thinking safety apparatus , developed around the needs of the first responder.

Advanced Climate Control

Spartan offers flat, 5″, 10″, 20″, and 24″ raised roof options that are reinforced with C-channel supports. As well as multiple seating configurations to provide your crew with extended legroom, improved visibility, additional storage and provides extra safety from triple-reinforced box front bulkhead, engine compartment, front and rear step assemblies.

Cab Construction

FEATURES

Lower Travel Height

Boom is stowed efficiently to provide a low profile and lower travel heights, delivering an added dimension to the fire attack capability of a pumper without a sginificant increase in the overall size of the apparatus.

Excellent Monitor Sweep

Hydraulically operated monitor/nozzle provides for a 90° (45° side-to-side) lateral sweep and 240° vertical travel (+/- 120°).

Unique Dual Waterways

A waterway is mounted on each side of the lower boom section and feed a single 4” internal aluminum waterway in the upper boom section.

A-style stabilizers lock themselves in operating position behind the rear wheels allowing for a narrow spread of 11’9” for easy setup in tight streets, alleys and cul-de-sacs.

A-Style Stabilizers

Boom Controls

State-of-the-art, electric-over-hydraulic joystick controls with a hinged rear control panel provide the ability to operate the boom and turntable with easy access for service.
